Лекция 3: Формат сообщений сигнализации DSS1

Вначале приведем пример реального сообщения сигнализации DSS1.

Пример трассировки сообщений протокола DSS1

FROM USER SIDE  - Frame #0011   Time: 14:42:27.59 Length: 23 octets

SETUP, Calling # 23974

Hex Image:

00 CB 00 00 08 01 01 05 04 04 88 90 21 8F 6C 07 00 80 32 33 39 37 34

Layer 2 - Data Link Layer (протокол Q.921)

Address field

   00    .......0   EA0

         ......0.   C/R = COMMAND

         000000..   SAPI = 0 Call control procedures

   CB    .......1   EA1

         1100101.   TEI = 101 Automatic assignment

Control field

   00    .......0   I Information

         0000000.   N(S) = 0

   00    .......0   P

         0000000.   N(R) = 0

Layer 3 - Network Layer

   08               Protocol discriminator = Q.931

   01    ....0001   Call Reference Length = 1

   01    0.......   Flag = ORIGINATOR

         .0000001   Call Reference Value = 1

   05    0.......   E – бит расширения

         .0000101   Message type = SETUP

   04                  Info Element = BEARER CAPABILITY (описание свойств услуги)

   04                     Length = 4 octets

   88          1.......   EXT

               .00.....   Coding standard = CCITT

               ...01000   Info transfer capability = Unrestricted digital info

   90          1.......   EXT

               .00.....   Transfer mode = Circuit mode

               ...10000   Info transfer rate = 64 kbit/s

   21          0.......   EXT

               .01.....   Layer 1 ID

               ...00001   User info layer 1 protocol = CCITT V.110 & X.30

   8F          1.......   EXT

               .0......   Synchronous/Asynchronous = Synchronous data

               ..0.....   Negotiation = In-band negotiation not possible

               ...01111   User rate = 56 kbit/s V.6

   6C                  Info Element = CALLING PARTY NUMBER (№ абонента А)

   07                     Length = 7 octets

   00          0.......   EXT

               .000....   Type of number = Unknown

               ....0000   Numbering plan = Unknown

   80          1.......   EXT

               .00.....   Presentation indicator = Presentation allowed

               ...000..   Spare bit(s)

               ......00   Screening indicator = User provided, not screened

   32 33 39 37

   34                     Number digits = 23974 - № абонента А

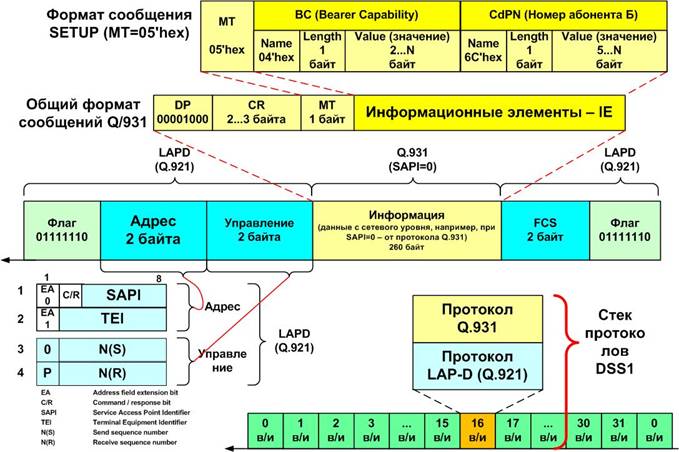

Для детальной разборки данного сообщения, рекомендуется следующий рисунок:
